37

–

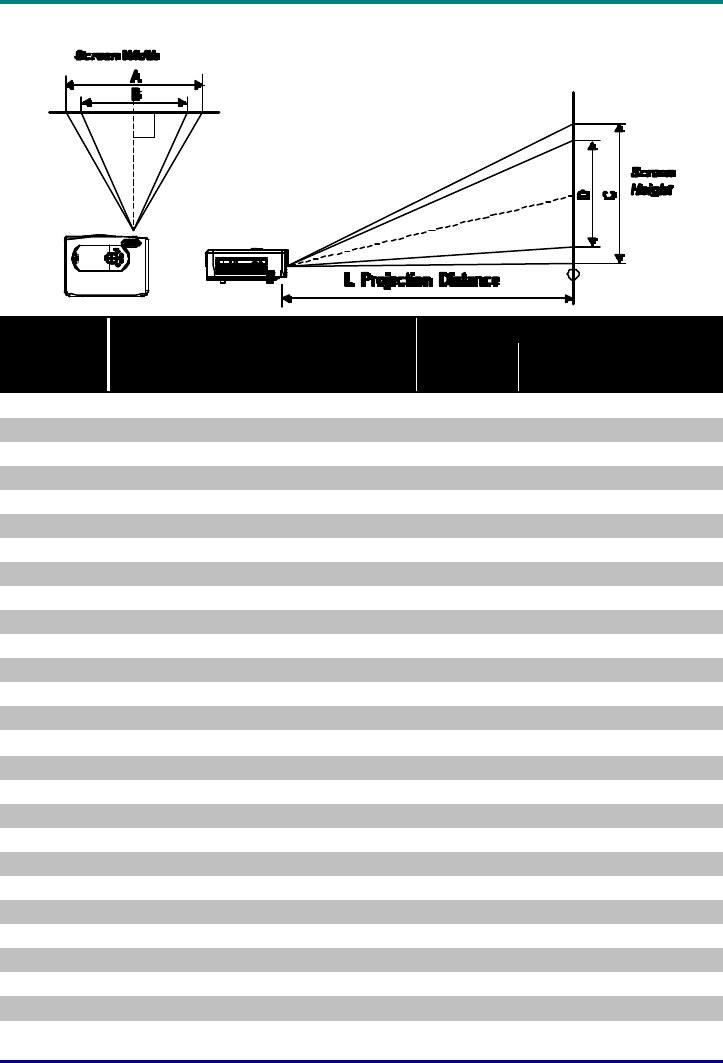

Projection Distance versus Projection Size

Max. Screen Size Min. Screen Size

Projection

Distance

Diagonal Width Height Diagonal Width Height

L

A C

B D

1.5m 1.14m 0.91m 0.68m 0.94m 0.75m 0.56m

4.92' 45" 36" 27" 36.88" 29.5" 22.1"

2m 1.52m 1.22m 0.91m 1.25m 1m 0.75m

6.56' 60" 48" 36" 49.18" 39.34" 29.51"

2.4m 1.83m 1.46m 1.1m 1.5m 1.20m 0.90m

7.87' 72" 57.6" 43.2" 59" 47.2" 35.4"

2.8m 2.13m 1.71m 1.28m 1.75m 1.4m 1.05m

9.18' 84" 67.2" 50.4" 68.85" 55.08" 41.31"

3.2m 2.44m 1.95m 1.46m 2m 1.6m 1.20m

10.5' 86" 68.8" 51.6" 70.49" 56.39" 42.29"

3.6m 2.74m 2.19m 1.65m 2.25m 1.80m 1.35m

11.81' 108" 86.4" 64.8" 88.52" 70.82" 53.11"

4m 3.05m 2.44m 1.83m 2.5m 2.00m 1.50m

13.12' 120" 96" 72" 98.36" 78.69" 59.02"

4.4m 3.35m 2.68m 2.01m 2.75m 2.2m 1.65m

14.43' 132" 105.6" 79.2" 108.19" 86.55" 64.91"

4.8m 3.66m 2.93m 2.19m 3.00m 2.40m 1.80m

15.74' 144" 115.2" 86.4" 118.03" 94.42" 70.82"

5.2m 3.96m 3.17m 2.38m 3.25m 2.60m 1.95m

17.06' 156" 124.8" 93.6" 127.86" 102.29" 76.72"

5.6m 4.27m 3.41m 2.56m 3.50m 2.80m 2.10m

18.37' 168" 134.4" 100.8" 137.7" 110.16" 82.62"

6m 4.57m 3.66m 2.74m 3.75m 3.00m 2.25m

19.68' 180" 144" 108" 147.54" 118.03" 88.52"

8m 6.10m 4.88m 3.66m 5.00m 4.00m 3.00m

26.24' 240" 192" 144" 196.72" 157.38" 118.03"
